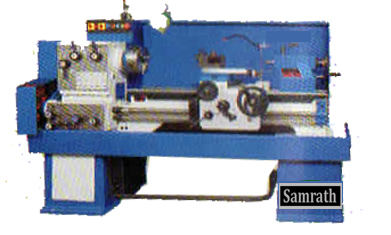

Lathe Machine
| Model | LDGG-1 | LDGG-2 | LDGG-3 | MDGG-1 | MDGG-2 | MDGG-3 |
| Bed | ||||||
| Bed Length |
1375 mm | 1600 mm | 1825 mm | 1375 mm | 1600 mm | 1825 mm |
| Bed Width | 240 mm | 240 mm | 240 mm | 280 mm | 280 mm | 280 mm |
| Gap Length |
110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Capacity |
||||||
| Height of Centre |
165 mm | 165 mm | 165 mm | 215 mm | 215 mm | 215 mm |
| Swing Over Bed | 320 mm | 320 mm | 320 mm | 425 mm | 425 mm | 425 mm |
| Swing Over gap |
500 mm | 500 mm | 500 mm | 620 mm | 620 mm | 620 mm |
| Swing Over Cross Slide | 180 mm | 180 mm | 180 mm | 250 mm | 250 mm | 250 mm |
| Admit Between Centre |
675 mm | 915 mm | 1145 mm | 550 mm | 990 mm | 970 mm |
| Movements of Cross Slide |
200 mm | 200 mm | 200 mm | 225 mm | 225 mm | 225 mm |
| Spindle | ||||||
| Spindle Nose | A2-4 | A2-4 | A2-4 | A2-4 | A2-4 | A2-4 |
| Taper Bore in Spindle Sleeve |
MT-4 | MT-3 | MT-3 | MT-4 | MT-4 | MT-4 |
| Spindle Bore |
40mm | 40mm | 40mm | 52 mm | 52 mm | 52 mm |
| Tall Stock | ||||||
| Quill Dia | 38 mm | 38 mm | 38 mm | 50 mm | 50 mm | 50 mm |
| Taper in Quill | MT-3 | MT-3 | MT-3 | MT-4 | MT-4 | MT-4 |
| Quill Travel | 115 mm | 115 mm | 115 mm | 150 mm | 150 mm | 150 mm |
| Speed | ||||||
| No.of Spindle Speed | 8 | 8 | 8 | 8 | 8 | 8 |
| R.P.M | 40-1100 | 40-1100 | 40-1100 | 40-1150 | 40-1150 | 40-1150 |
| Threads | ||||||
| Lead Screw Dia | 1" x 4TPI | 1" x 4TPI | 1" x 4TPI | 1.25" x 4TPI | 1.25" x 4TPI | 1.25" x 4TPI |
| Metric Thread | 13 (1-8mm) | 13 (1-6mm) | 13 (1-6mm) | 13 (1-6mm) | 13 (1-6mm) | 13 (1-6mm) |
| English Thread | 19 ( 2-24 TPI) | 19 ( 2-24 TPI) | 19 ( 2-24 TPI) | 19 ( 2-24 TPI) | 19 ( 2-24 TPI) | 19 ( 2-24 TPI) |
| Electrical | ||||||
| Power Required | 2HP | 2HP | 2HP | 3HP | 3HP | 3HP |
